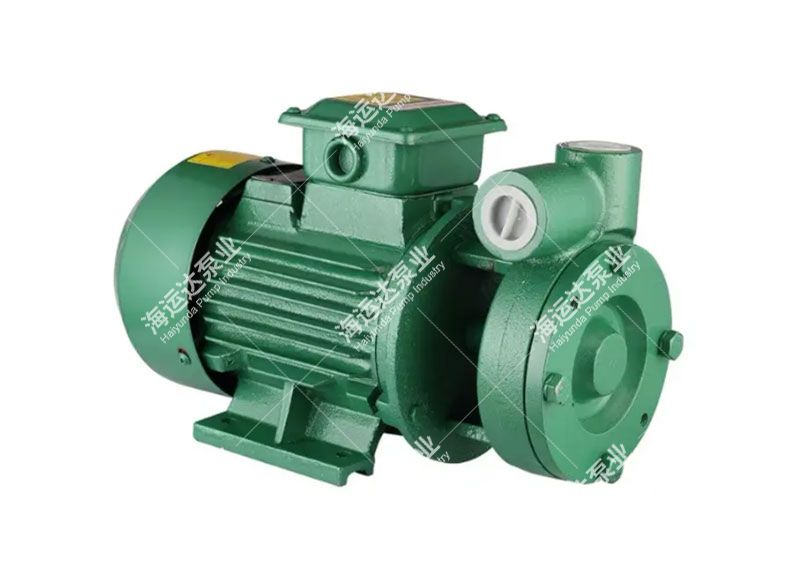

Product name：WTD feedwater pump
Category：Horizontal centrifugal pump
Release time：09-08-2024
Number of views：24
Product Introduction
The WTD series coaxial mechanical seal single-stage vortex pump is characterized by coaxial pump and motor, using hard alloy mechanical seal, stainless steel shaft, and tin bronze impeller. It has the advantages of light weight, small volume, low noise, high pump efficiency, long service life, and easy maintenance. It is a product used in the shipbuilding industry, boiler feedwater, cooling, flushing, water lubrication, and other low flow, high head water supply devices with a temperature not exceeding 100 ℃.
Model Meaning
Main performance specifications
The specifications and performance of the WTD series coaxial mechanical seal single-stage vortex pump are shown in the chart.
The supporting motor is 2-pole, with a power frequency of 50Hz and a voltage of 380V or a power frequency of 60Hz and a voltage of 440V.
Type | Capacity | Lift | Motor Power | Speed | Inlet & Outlet |
3/4WTD0.7-10.5 | 0.7/0.84 | 105/150 | 1.5/2.2 | 2860/3500 | 3/4" |
1WTD2.4-10.5 | 2.4/2.88 | 105/150 | 2.2/3 | 2860/3500 | 1" |
1WTD2.5-12 | 2.5/3 | 120/171 | 3/4 | 2860/3500 | 1" |
