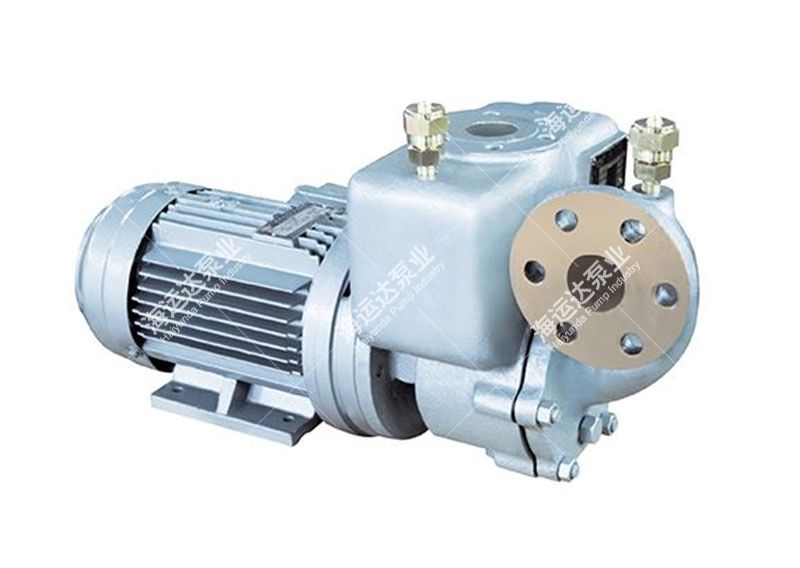

Product name：Self suction centrifugal vortex pump for CWX pressure water tank
Category：Horizontal centrifugal pump
Release time：09-08-2024
Number of views：77
Product Introduction
The 1.5CWX centrifugal vortex pump is used to pump fresh water and seawater for drinking, washing, and sanitation purposes in ship equipment.
The significance of pump model: Taking L 5CWX-4A as an example
1.5 The quotient (integer value) of the inlet and outlet diameters of a pump divided by 25: C - Marine pump: WX - Centrifugal vortex pump:
4 to 1 ratio of teaching divided by 10: A - First improvement, supported by brackets.
Main performance parameters of the pump:
220-440V 50-60HZ
Type | Capacity | Lift | Speed | Motor Power | Self-Suction head | Notes |
l.5CWX-2 | 3/3.6 | 40/57 | 2900 | 2.2/4 | 4 | Motor direct connection |
1.5CWX-2A | Bracket connection | |||||
l.5CWX-3 | 6.5/7.8 | 35/50 | 2900 | 3/5.5 | 4 | Motor direct connection |
1.5CWX-3A | Bracket connection | |||||
1.5CWX-4 | 10/12 | 35/50 | 2900 | 4/7.5 | 4 | Motor direct connection |
l.5CWX-4A | Bracket connection |
