Product name：Boiler water circulating pump
Category：Horizontal centrifugal pump
Release time：24-08-2024
Number of views：86
86-15380566799
Product Introduction

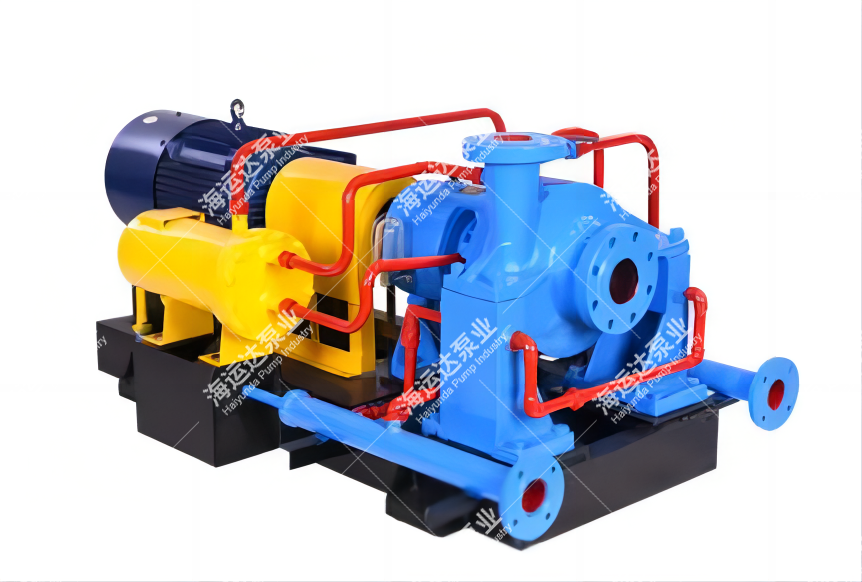

Boiler water circulation pump (high temperature pump)
This series of pumps is mainly used for forced circulation of high-temperature water in marine boilers, and the operating temperature can reach up to 360 ℃.
380V/50Hz～460V/60Hz
| Model | Internet traffic m3/h | Lift m | Speed r/min | Motor Power kw | Operation temperature ℃ |
| BT40-5 | 10 | 60 | 2900/3600 | 5.5 | ≤320 |
| BT50-4 | 16 | 35 | 2900/3600 | 5.5 | ≤320 |
| BT70-4 | 40 | 40 | 2900/3600 | 11 | ≤320 |
| BT100-5 | 33 | 52 | 2900/3600 | 15 | ≤320 |
| BBH-65D | 25 | 40 | 2900/3500 | 7.5 | ≤320 |
| EHC-50J | 17 | 40 | 2900/3500 | 7.5 | ≤320 |
| EHC-51JX | 5 | 30 | 2900/3500 | 2.2 | ≤320 |
| HC-51MJ | 16 | 30 | 2900/3500 | 4 | ≤320 |
| EHC-51MJ | 21 | 40 | 2900/3500 | 7.5 | ≤320 |
| CRJ50-32-160 | 4～32 | 50～30 | 2900/3500 | 7.5 | ≤320 |
| A | 4～28 | 48～30 | 2900/3500 | 5.5 | ≤320 |
| B | 4～24 | 45～30 | 2900/3500 | 4 | ≤320 |
| C | 4～20 | 43～30 | 2900/3500 | 3 | ≤320 |
| D | 4～17 | 38～30 | 2900/3500 | 2.2 | ≤320 |
| CRJ65-50-160 | 10～50 | 50～30 | 2900/3500 | 15 | ≤320 |
| A | 10～47 | 48～30 | 2900/3500 | 11 | ≤320 |
| B | 10～43 | 45～30 | 2900/3500 | 7.5 | ≤320 |
| C | 10～40 | 43～30 | 2900/3500 | 5.5 | ≤320 |
| CRJ80-50-200 | 30～80 | 70～30 | 2900/3500 | 37 | ≤320 |
| A | 30～75 | 65～30 | 2900/3500 | 30 | ≤320 |
| B | 30～70 | 60～30 | 2900/3500 | 22 | ≤320 |
| C | 30～65 | 55～30 | 2900/3500 | 18.5 | ≤320 |
| CRJ100-80-160 | 60～120 | 50～30 | 2900/3500 | 30 | ≤320 |
| A | 60～100 | 45～30 | 2900/3500 | 22 | ≤320 |
| B | 60～80 | 40～30 | 2900/3500 | 18.5 | ≤320 |
| CRJ100-100-200 | 50～140 | 75～35 | 2900/3500 | 37～15 | ≤320 |
| CRJ125-100-160 | 80～160 | 48～30 | 2900/3500 | 30～15 | ≤320 |
| CRJ125-125-200 | 90～180 | 70～35 | 2900/3500 | 45～30 | ≤320 |
