Product name：CGW series marine sewage pump
Category：Sewage pump
Release time：08-08-2024
Number of views：65
Product Introduction

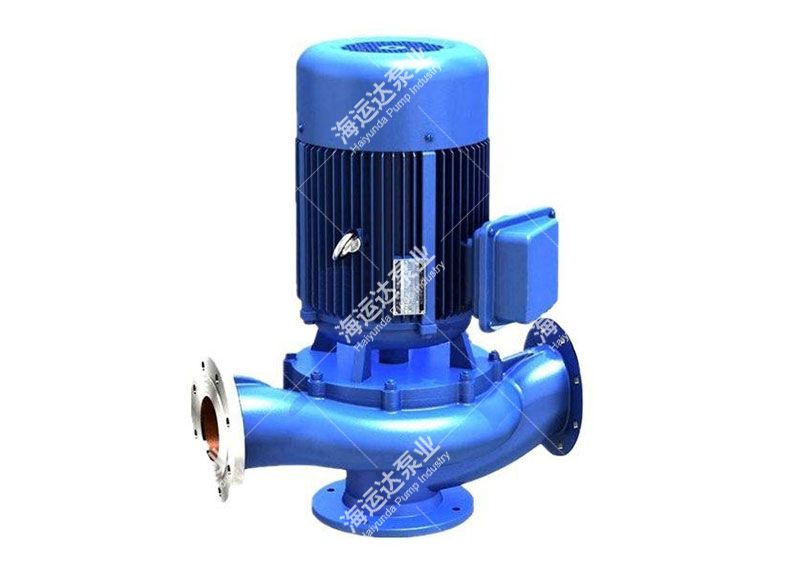

CGW series marine sewage pump CGW series marine sewage pump is an electric vertical pipeline type single channel impeller centrifugal discharge pump (referred to as sewage pump): This series of pumps is suitable for transporting solid blocks with a diameter of 1/3 of the pump diameter and fiber materials with a length of 5 times the pump diameter: domestic sewage, industrial wastewater, oily wastewater, fresh water or seawater with a temperature below 85 ℃. It is a commonly used matching pump for sewage treatment equipment.
Example: 25CGW-10-15
25-- Inlet and outlet diameter Ø 25mm, inlet and outlet
CGW - Marine Pipeline Sewage Pump
10- Rated flow rate 10m ³/h
15- Discharge pressure Discharge pressure
Main technical performance parameters
Type | Flowrate m³/h | Pressure Kpa | Motor power Kw | Voltage V | Frequency Hz |
20CGW3-6 | 3 | 0.06 | 0.37/0.55 | 380/440 | 50/60 |
25CGW5-10 | 5 | 0.1 | 0.55/0.75 | 380/440 | 50/60 |
25CGW10-15 | 10 | 0.15 | 1.1/1.5 | 380/440 | 50/60 |
32CGW10-20 | 10 | 0.2 | 1.5/2.2 | 380/440 | 50/60 |
32CGW10-25 | 10 | 0.25 | 2.2/3 | 380/440 | 50/60 |
40CGW15-20 | 15 | 0.2 | 2.2/3 | 380/440 | 50/60 |
50CGW10-30 | 10 | 0.3 | 3/4 | 380/440 | 50/60 |
50CGW15-30 | 15 | 0.3 | 4/5.5 | 380/440 | 50/60 |
65CGW20-30 | 20 | 0.3 | 7.5/11 | 380/440 | 50/60 |
65CGW30-30 | 30 | 0.3 | 11/15 | 380/440 | 50/60 |
80CGW40-20 | 40 | 0.2 | 5.5/7.5 | 380/440 | 50/60 |
80CGW50-30 | 50 | 0.3 | 7.5/11 | 380/440 | 50/60 |
100CGW80-20 | 80 | 0.2 | 11/15 | 380/440 | 50/60 |
100CGW100-30 | 100 | 0.3 | 15/18.5 | 380/440 | 50/60 |
