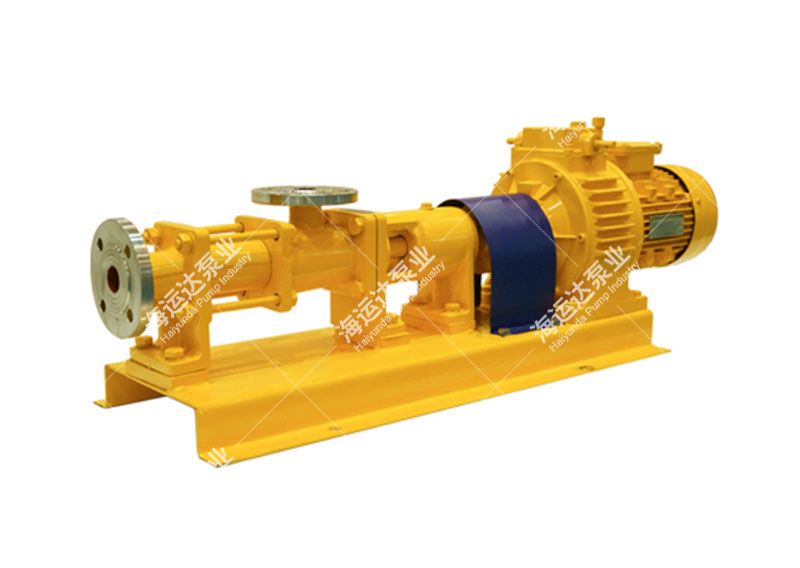

G-type single screw pump is a type of internal meshing sealed screw pump, belonging to the rotary displacement pump. Due to its strong adaptability to media, smooth flow, good suction performance, and small pressure pulsation, this pump can not only transport various flowable media, but also highly viscous media, media containing hard suspended particles or solid particles, and media containing fibers. It has good regulation performance, wide range, and high efficiency. Therefore, it is widely used in various industries such as environmental protection, shipbuilding, petroleum, medicine, daily chemical, food, brewing, construction, mining, chemistry, printing, papermaking, power plants, boilers, etc.

Working principle:

A single screw pump is an internal meshing rotary displacement pump, with the main working components being an eccentric screw (rotor) and a fixed liner (stator). Due to the special geometric shape of the rotor and stator, several separate sealed chambers are formed. The operation of the rotor continuously and uniformly transports the medium in each sealed chamber from the suction end to the discharge end with a constant volume. Due to these characteristics, single screw pumps are particularly suitable for the following working conditions:

1. Transport high viscosity media;

2. Transport media containing solid particles or fibers;

3. Require continuity, stable pressure, and no periodic pressure fluctuations;

4. Require minimal agitation and no damage to the inherent structure of the conveyed medium;

Model Description

G ---------- Single screw pump

35-------- nominal diameter of screw shaft (mm)

1--------- represents the first stage pump

Application scope

1. Environmental protection: transportation of industrial wastewater, domestic wastewater, and sewage containing solid particles and short fibers, especially suitable for equipment such as oil-water separators and plate and frame filter presses;

2. Shipbuilding industry: transportation of media such as bottom cleaning, oil-water, oil residue, and oily water;

3. Petroleum industry: transporting crude oil, mixtures of crude oil and water, mixtures of coalfield gas and water, injecting polymers into the formation, etc., thereby reducing the cost of mechanical oil recovery and coal mining, and increasing oil recovery rate;

4. Medicine and daily chemical products: transportation of various viscous slurries, emulsions, ointments, and cosmetics;

5. Food canning industry: transportation of various viscous starches, cooking oils, honey, syrups, fruit pulp, cream, minced fish meat, and their by-products;

6. Brewing industry: various fermented viscous slurries, concentrated distiller's grains, grain product residues, various sauces, slurries, and mucilages containing solid lumps;

7. Construction industry: spraying and conveying of cement mortar, lime slurry, coatings, and other paste like materials;

8. Mining industry: Groundwater and slurry containing solid particles in mines are discharged to the surface;

9. Chemical industry: various suspensions, oils, various colloidal slurries, various adhesives;

10. Printing and papermaking industry: transportation of high viscosity ink, PVC polymer plastic paste for wallpaper, and various concentrations of pulp and short fiber pulp.
