Product name：CYBW series marine air pump
Category：Other pumps
Release time：08-08-2024
Number of views：29
Product Introduction

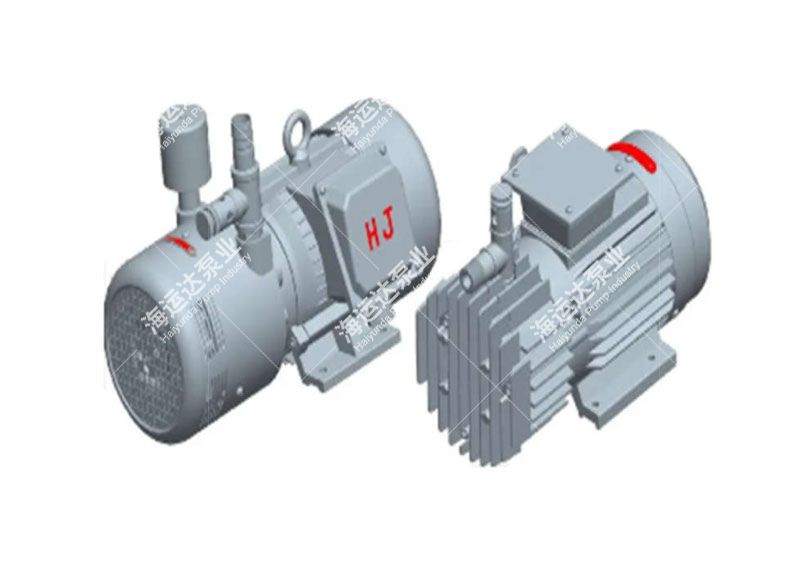

The CYBW series marine air pump is an oil-free self-lubricating plate air pump, which has the characteristics of small volume, light weight, low energy consumption, and pure exhaust without oil stains and pollution. Meets the requirements for marine supporting facilities. The CYBW series air pump is designed to be compatible with marine domestic sewage treatment equipment, and is also suitable for supporting industries such as printing machinery, packaging, blow molding, and lighting.
Example: CYBW-25
CYBW - Marine Air Pump 25- Airflow m ³/h
Main technical performance parameters
Type | Flowrate m³/h | Flowrate m³/h | Pressure Kpa | Motor power Kw | Voltage V | Frequency Hz |
CYBW-6 | 6 | 5.5 | 60 | 0.25 | 380/440 | 50/60 |
CYBW-10 | 10 | 8.7 | 60 | 0.37 | 380/440 | 50/60 |
CYBW-15 | 15 | 13 | 60 | 0.55 | 380/440 | 50/60 |
CYBW-20 | 20 | 17 | 60 | 0.75 | 380/440 | 50/60 |
CYBW-25 | 25 | 23 | 60 | 1.1 | 380/440 | 50/60 |
CYBW-40 | 40 | 35 | 60 | 1.5 | 380/440 | 50/60 |
